harbor篇- 手把手教你搭建一个docker私有仓库 a year ago
博客大纲
前言
Docker 容器应用的开发和运行离不开可靠的镜像管理，虽然 Docker 官方也提供了公共的镜像仓库，但是从安全和效率等方面考虑，部署我们私有环境内的 Registry 也是非常必要的。
Harbor 仓库介绍
我们在日常 Docker 容器使用和管理过程中，渐渐发现部署企业私有仓库往往是很有必要的, 它可以帮助你管理企业的一些敏感镜像, 同时由于 Docker Hub 的下载速度和 GFW 的原因, 往往需要将一些无法直接下载的镜像导入本地私有仓库. 而 Harbor 就是部署企业私有仓库的一个不二之选。
Harbor 是由 VMware 公司开源的企业级的 Docker Registry 管理项目，Harbor 主要提供 Dcoker Registry 管理 UI，提供的功能包括：基于角色访问的控制权限管理(RBAC)、AD/LDAP 集成、日志审核、管理界面、自我注册、镜像复制和中文支持等。Harbor 的目标是帮助用户迅速搭建一个企业级的 Docker registry 服务。它以 Docker 公司开源的 registry 为基础，额外提供了如下功能:-> 基于角色的访问控制(Role Based Access Control)-> 基于策略的镜像复制(Policy based image replication)-> 镜像的漏洞扫描(Vulnerability Scanning)-> AD/LDAP 集成(LDAP/AD support)-> 镜像的删除和空间清理(Image deletion & garbage collection)-> 友好的管理 UI(Graphical user portal)-> 审计日志(Audit logging)-> RESTful API-> 部署简单(Easy deployment)
Harbor 的所有组件都在 Dcoker 中部署，所以 Harbor 可使用 Docker Compose 快速部署。需要特别注意：由于 Harbor 是基于 Docker Registry V2 版本，所以 docker 必须大于等于 1.10.0 版本，docker-compose 必须要大于 1.6.0 版本！

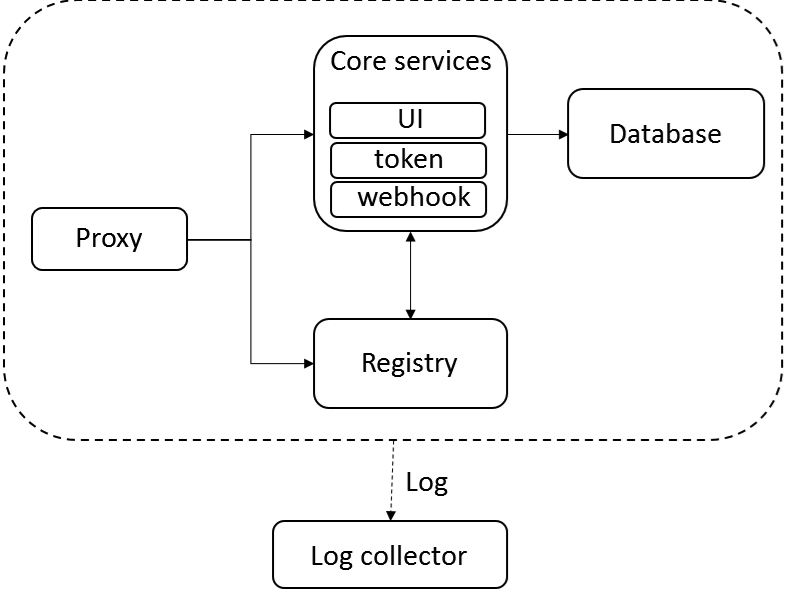

Harbor 仓库结构
Harbor 的每个组件都是以 Docker 容器的形式构建的，可以使用 Docker Compose 来进行部署。如果环境中使用了 kubernetes，Harbor 也提供了 kubernetes 的配置文件。Harbor 大概需要以下几个容器组成：ui(Harbor 的核心服务)、log(运行着 rsyslog 的容器，进行日志收集)、mysql(由官方 mysql 镜像构成的数据库容器)、Nginx(使用 Nginx 做反向代理)、registry(官方的 Docker registry)、adminserver(Harbor 的配置数据管理器)、jobservice(Harbor 的任务管理服务)、redis(用于存储 session)。

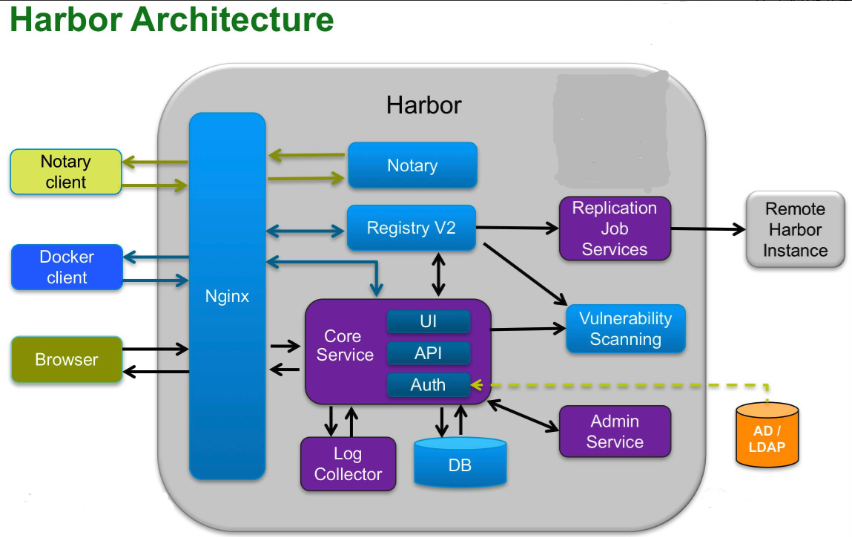

Harbor 是一个用于存储和分发 Docker 镜像的企业级 Registry 服务器，整体架构还是很清晰的。下面借用了网上的架构图:
搭建 harbor 镜像仓库
1、下载 harbor 的安装包
wget https://github.com/goharbor/harbor/releases/download/v2.4.2/harbor-offline-installer-v2.4.2.tgz
2、下载完进行解压
tar -xvf harbor-offline-installer-v2.4.2.tgz
3、编辑配置文件
#进入harbor目录
cd harbor
#复制一份harbor的配置文件并改名harbor.yml
cp -ar harbor.yml.tmpl harbor.yml
#vim进入配置文件
vim harbor.yml
修改以下内容：
hostname: x.x.x.x #这里配置的监听地址，也可以是域名
port: 10010 #这里配置监听端口
harbor_admin_password: 123456 # 配置admin用户的密码
data_volume: /data/harbor #配置数据仓库

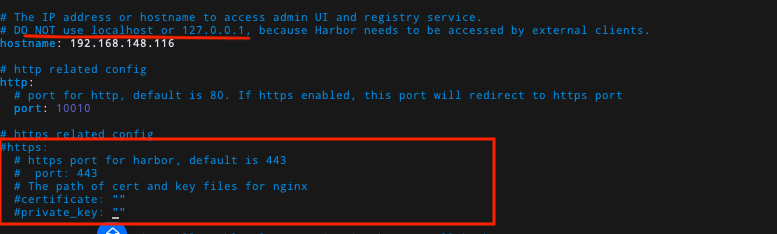

# 注释https，在13行开始
如下：
4、安装
接着在harbor目录下创建一个脚本build.sh:
#!/bin/bash
sudo ./prepare
sudo ./install.sh
# 给执行权限
chmod +x build.sh
# install
./build.sh
下面是安装日志：
# scott @ gpt in ~/harbor [20:04:58]
$ ./build.sh
prepare base dir is set to /home/scott/harbor
Unable to find image 'goharbor/prepare:v2.4.2' locally
v2.4.2: Pulling from goharbor/prepare
6c964f3b879f: Pull complete
3042f4284e2c: Pull complete
7a91ea24644b: Pull complete
b3c79e094a18: Pull complete
110443f7949d: Pull complete
1fbee02500d7: Pull complete
8675c3a61fe1: Pull complete
d48514bf9c2b: Pull complete
Digest: sha256:b14da6252672c596291f02a5e76fbb065f558aaf0a647f90e1c77aefaa29db74
Status: Downloaded newer image for goharbor/prepare:v2.4.2
WARNING:root:WARNING: HTTP protocol is insecure. Harbor will deprecate http protocol in the future. Please make sure to upgrade to https
Clearing the configuration file: /config/log/rsyslog_docker.conf
Clearing the configuration file: /config/log/logrotate.conf
Clearing the configuration file: /config/db/env
Clearing the configuration file: /config/registryctl/config.yml
Clearing the configuration file: /config/registryctl/env
Clearing the configuration file: /config/nginx/nginx.conf
Clearing the configuration file: /config/jobservice/config.yml
Clearing the configuration file: /config/jobservice/env
Clearing the configuration file: /config/portal/nginx.conf
Clearing the configuration file: /config/core/app.conf
Clearing the configuration file: /config/core/env
Clearing the configuration file: /config/registry/config.yml
Clearing the configuration file: /config/registry/root.crt
Clearing the configuration file: /config/registry/passwd
Generated configuration file: /config/portal/nginx.conf
Generated configuration file: /config/log/logrotate.conf
Generated configuration file: /config/log/rsyslog_docker.conf
Generated configuration file: /config/nginx/nginx.conf
Generated configuration file: /config/core/env
Generated configuration file: /config/core/app.conf
Generated configuration file: /config/registry/config.yml
Generated configuration file: /config/registryctl/env
Generated configuration file: /config/registryctl/config.yml
Generated configuration file: /config/db/env
Generated configuration file: /config/jobservice/env
Generated configuration file: /config/jobservice/config.yml
loaded secret from file: /data/secret/keys/secretkey
Generated configuration file: /compose_location/docker-compose.yml
Clean up the input dir
[Step 0]: checking if docker is installed ...
Note: docker version: 24.0.5
[Step 1]: checking docker-compose is installed ...
Note: docker-compose version: 2.20.3
[Step 2]: loading Harbor images ...
7abced50bfd2: Loading layer [==================================================>] 5.296MB/5.296MB
43ad630c07b8: Loading layer [==================================================>] 5.928MB/5.928MB
3457e72d7725: Loading layer [==================================================>] 14.47MB/14.47MB
4a079b4b377a: Loading layer [==================================================>] 29.29MB/29.29MB
7b180b7bf3b4: Loading layer [==================================================>] 22.02kB/22.02kB
7b678649a1be: Loading layer [==================================================>] 14.47MB/14.47MB
Loaded image: goharbor/notary-signer-photon:v2.4.2
4f650960b0dc: Loading layer [==================================================>] 5.832MB/5.832MB
967788659fd5: Loading layer [==================================================>] 4.096kB/4.096kB
30cc19bdf2d6: Loading layer [==================================================>] 3.072kB/3.072kB
9ccede1a4324: Loading layer [==================================================>] 47.85MB/47.85MB
86f4685faff0: Loading layer [==================================================>] 12.38MB/12.38MB
25af1cf9c44e: Loading layer [==================================================>] 61.02MB/61.02MB
Loaded image: goharbor/trivy-adapter-photon:v2.4.2
Loaded image: goharbor/prepare:v2.4.2
323ed00cae7e: Loading layer [==================================================>] 8.447MB/8.447MB
c3f8c4668352: Loading layer [==================================================>] 3.584kB/3.584kB
94b71cd07106: Loading layer [==================================================>] 2.56kB/2.56kB
5d5638decfe4: Loading layer [==================================================>] 75.6MB/75.6MB
48426521f41c: Loading layer [==================================================>] 5.632kB/5.632kB
bb977315930e: Loading layer [==================================================>] 97.28kB/97.28kB
2a80a5f64ee7: Loading layer [==================================================>] 11.78kB/11.78kB
0a5146355ed0: Loading layer [==================================================>] 76.5MB/76.5MB
7d5eac57d5fa: Loading layer [==================================================>] 2.56kB/2.56kB
Loaded image: goharbor/harbor-core:v2.4.2
f7cedf07c50c: Loading layer [==================================================>] 8.447MB/8.447MB
b2a916599ac7: Loading layer [==================================================>] 3.584kB/3.584kB
3bc2556f46f8: Loading layer [==================================================>] 2.56kB/2.56kB
a9cc192089ec: Loading layer [==================================================>] 86.96MB/86.96MB
9e9c53c1bd85: Loading layer [==================================================>] 87.75MB/87.75MB
Loaded image: goharbor/harbor-jobservice:v2.4.2
6111e09009c2: Loading layer [==================================================>] 7.222MB/7.222MB
Loaded image: goharbor/nginx-photon:v2.4.2
f4658d2c3aa3: Loading layer [==================================================>] 8.447MB/8.447MB
4b7bdcad271f: Loading layer [==================================================>] 18.13MB/18.13MB
cbb8c130a490: Loading layer [==================================================>] 4.608kB/4.608kB
f1367013643c: Loading layer [==================================================>] 18.93MB/18.93MB
Loaded image: goharbor/harbor-exporter:v2.4.2
a1b12e0ab8ea: Loading layer [==================================================>] 5.296MB/5.296MB
df6629a5ee28: Loading layer [==================================================>] 5.928MB/5.928MB
944fcde3a84b: Loading layer [==================================================>] 15.88MB/15.88MB
300e181c27cf: Loading layer [==================================================>] 29.29MB/29.29MB
87f01e78dde1: Loading layer [==================================================>] 22.02kB/22.02kB
8306283aa89d: Loading layer [==================================================>] 15.88MB/15.88MB
Loaded image: goharbor/notary-server-photon:v2.4.2
c635aace513a: Loading layer [==================================================>] 5.3MB/5.3MB
8deb84525956: Loading layer [==================================================>] 64.5MB/64.5MB
5d1431f9963f: Loading layer [==================================================>] 3.072kB/3.072kB
faeb0aac7135: Loading layer [==================================================>] 4.096kB/4.096kB
7ade25e3acdb: Loading layer [==================================================>] 65.29MB/65.29MB
Loaded image: goharbor/chartmuseum-photon:v2.4.2
27495e3181af: Loading layer [==================================================>] 7.222MB/7.222MB
88649dba6134: Loading layer [==================================================>] 7.356MB/7.356MB
875f964b6f85: Loading layer [==================================================>] 1.754MB/1.754MB
Loaded image: goharbor/harbor-portal:v2.4.2
c724cc796747: Loading layer [==================================================>] 124.3MB/124.3MB
b6c853c6dc0d: Loading layer [==================================================>] 3.584kB/3.584kB
0c5772798040: Loading layer [==================================================>] 3.072kB/3.072kB
c5f3bfcfa62d: Loading layer [==================================================>] 2.56kB/2.56kB
2602a8530e9d: Loading layer [==================================================>] 3.072kB/3.072kB
ba9b43b5ffb1: Loading layer [==================================================>] 3.584kB/3.584kB
cf92b578ba00: Loading layer [==================================================>] 20.48kB/20.48kB
Loaded image: goharbor/harbor-log:v2.4.2
fc1f8cdaf1ce: Loading layer [==================================================>] 1.096MB/1.096MB
eb68e72cbb03: Loading layer [==================================================>] 5.888MB/5.888MB
53a31c9e9836: Loading layer [==================================================>] 166.2MB/166.2MB
bed7172f8681: Loading layer [==================================================>] 17.75MB/17.75MB
c8fcd33ae148: Loading layer [==================================================>] 4.096kB/4.096kB
0c8d734a07ee: Loading layer [==================================================>] 6.144kB/6.144kB
c01db4825573: Loading layer [==================================================>] 3.072kB/3.072kB
4802d0abc8ba: Loading layer [==================================================>] 2.048kB/2.048kB
70bafeb87c65: Loading layer [==================================================>] 2.56kB/2.56kB
376ced88e40e: Loading layer [==================================================>] 2.56kB/2.56kB
0ba55f221469: Loading layer [==================================================>] 2.56kB/2.56kB
55cac263100c: Loading layer [==================================================>] 8.704kB/8.704kB
Loaded image: goharbor/harbor-db:v2.4.2
30ed654bbb0e: Loading layer [==================================================>] 5.301MB/5.301MB
51a81f0bf9ea: Loading layer [==================================================>] 4.096kB/4.096kB
12992ea6b45e: Loading layer [==================================================>] 3.072kB/3.072kB
91b97bcaa9d7: Loading layer [==================================================>] 17.32MB/17.32MB
1a992360f6fa: Loading layer [==================================================>] 18.12MB/18.12MB
Loaded image: goharbor/registry-photon:v2.4.2
d7224235291f: Loading layer [==================================================>] 5.301MB/5.301MB
dd26d9070a7b: Loading layer [==================================================>] 4.096kB/4.096kB
4022ecee5f13: Loading layer [==================================================>] 17.32MB/17.32MB
93d727d0accc: Loading layer [==================================================>] 3.072kB/3.072kB
8a56be8f0b84: Loading layer [==================================================>] 28.69MB/28.69MB
629472303402: Loading layer [==================================================>] 46.81MB/46.81MB
Loaded image: goharbor/harbor-registryctl:v2.4.2
bf4dfb7b7a70: Loading layer [==================================================>] 120.1MB/120.1MB
a0b0ce804b6b: Loading layer [==================================================>] 3.072kB/3.072kB
f088aae660dd: Loading layer [==================================================>] 59.9kB/59.9kB
2c15508db9bd: Loading layer [==================================================>] 61.95kB/61.95kB
Loaded image: goharbor/redis-photon:v2.4.2
[Step 3]: preparing environment ...
[Step 4]: preparing harbor configs ...
prepare base dir is set to /home/scott/harbor
WARNING:root:WARNING: HTTP protocol is insecure. Harbor will deprecate http protocol in the future. Please make sure to upgrade to https
Clearing the configuration file: /config/log/rsyslog_docker.conf
Clearing the configuration file: /config/log/logrotate.conf
Clearing the configuration file: /config/db/env
Clearing the configuration file: /config/registryctl/config.yml
Clearing the configuration file: /config/registryctl/env
Clearing the configuration file: /config/nginx/nginx.conf
Clearing the configuration file: /config/jobservice/config.yml
Clearing the configuration file: /config/jobservice/env
Clearing the configuration file: /config/portal/nginx.conf
Clearing the configuration file: /config/core/app.conf
Clearing the configuration file: /config/core/env
Clearing the configuration file: /config/registry/config.yml
Clearing the configuration file: /config/registry/passwd
Generated configuration file: /config/portal/nginx.conf
Generated configuration file: /config/log/logrotate.conf
Generated configuration file: /config/log/rsyslog_docker.conf
Generated configuration file: /config/nginx/nginx.conf
Generated configuration file: /config/core/env
Generated configuration file: /config/core/app.conf
Generated configuration file: /config/registry/config.yml
Generated configuration file: /config/registryctl/env
Generated configuration file: /config/registryctl/config.yml
Generated configuration file: /config/db/env
Generated configuration file: /config/jobservice/env
Generated configuration file: /config/jobservice/config.yml
loaded secret from file: /data/secret/keys/secretkey
Generated configuration file: /compose_location/docker-compose.yml
Clean up the input dir
[Step 5]: starting Harbor ...
[+] Running 9/9
✔ Container harbor-log Started 0.0s
✔ Container redis Started 0.0s
✔ Container registry Started 0.0s
✔ Container harbor-db Started 0.0s
✔ Container registryctl Started 0.0s
✔ Container harbor-portal Started 0.0s
✔ Container harbor-core Started 0.0s
✔ Container harbor-jobservice Started 0.0s
✔ Container nginx Started 0.0s
✔ ----Harbor has been installed and started successfully.----

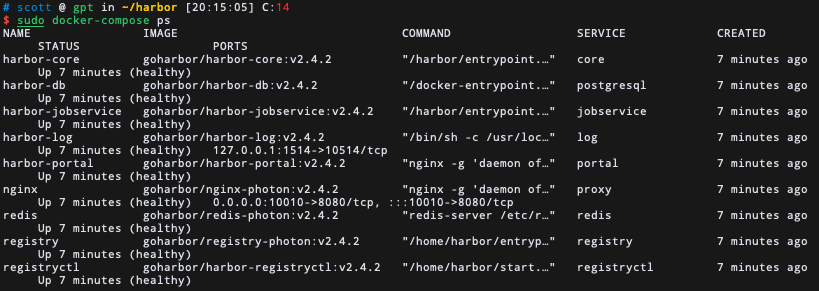

5、检查是否安装成功
6、访问 harbor 页面
- 访问地址：（ip:端口）
192.168.148.116:10010 - 用户名：admin
- 密码：自己设定的密码 登录进入；
因为我是在vps上搭建的 所以可以直接访问
7、上传镜像
1， 查看要上传的镜像
先去docker hub上拉一个镜像
$ sudo docker pull nginx:stable-perl

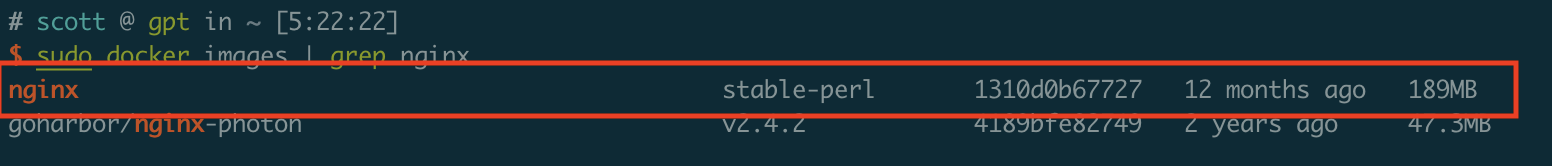

查看刚才的镜像：
2，给要上传的镜像 tag 打个标签(修改镜像名)
注意：一定要加上项目名称
格式：
sudo docker tag 镜像名:版本 your-ip:端口/项目名称/新的镜像名:版本
实例：
由于我是在宿主主机内操作的，所以ip用127.0.0.1
$ sudo docker tag nginx:stable-perl 127.0.0.1:10010/share/nginx_from_docker_hub:v1
查看刚才的镜像：
3, 推送镜像到 harbor 仓库

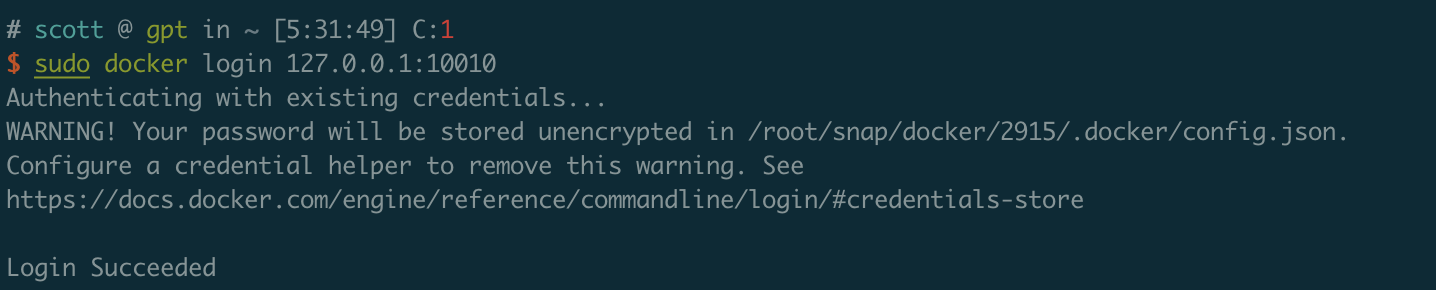

在push之前，需要docker login：
格式：
sudo docker login ip:port
实例如下：
开始push，格式如下：
sudo docker push 修改的镜像名

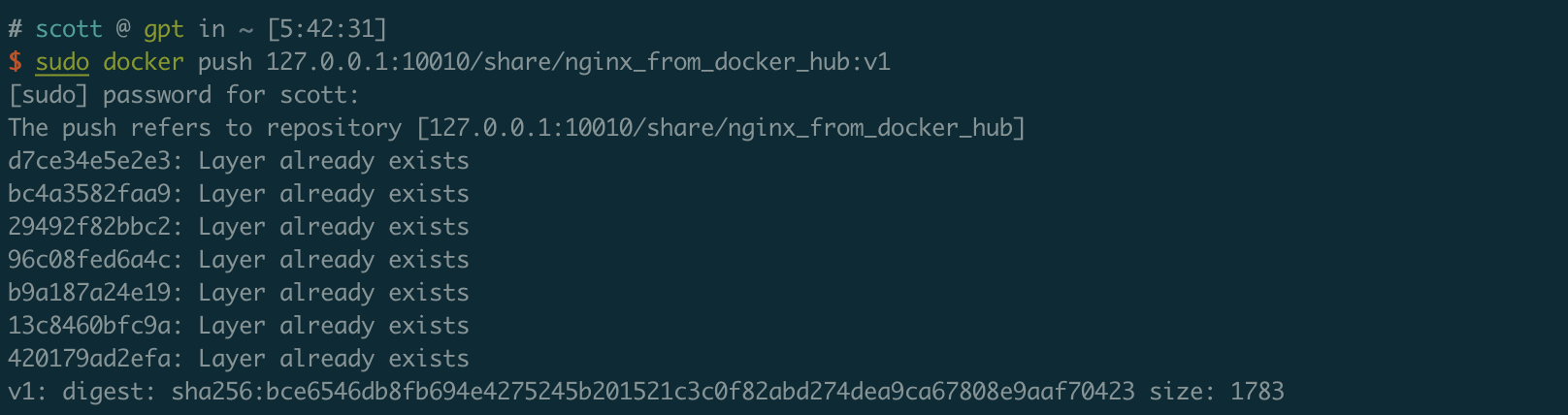

实例：

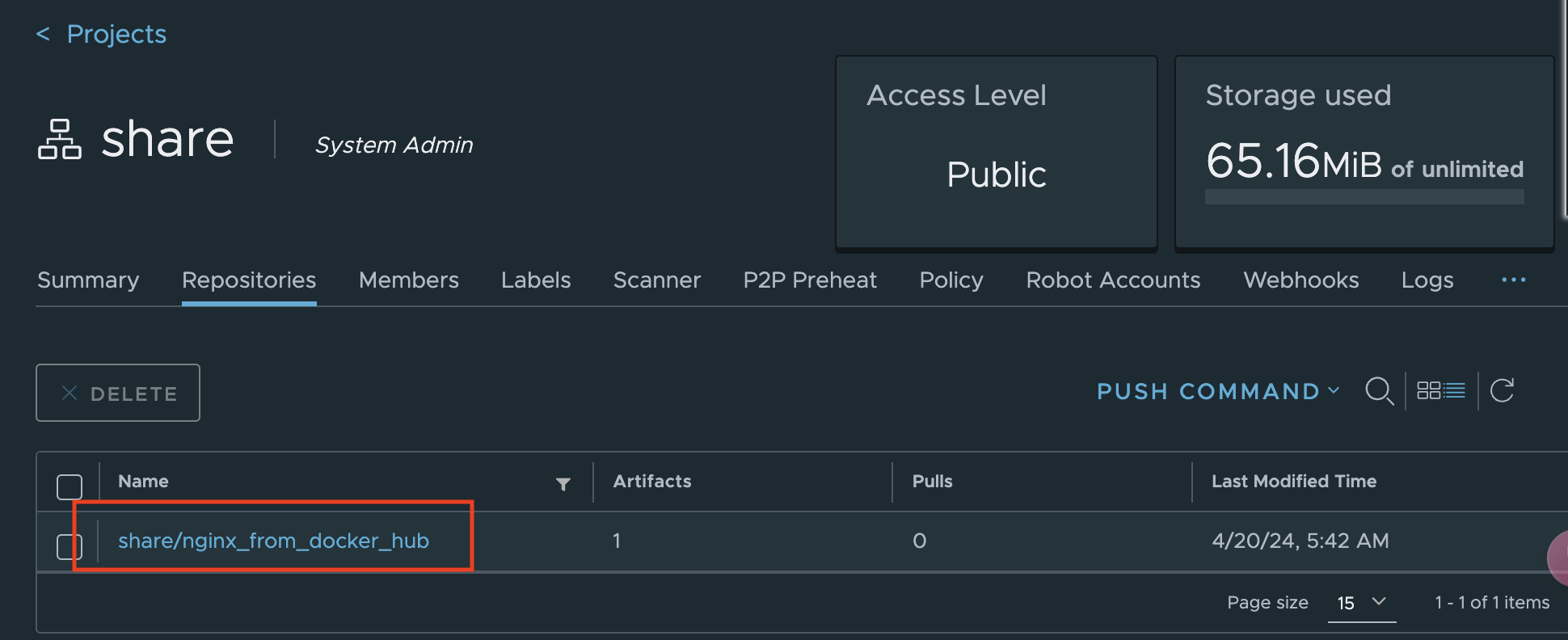

4, web 页面查看

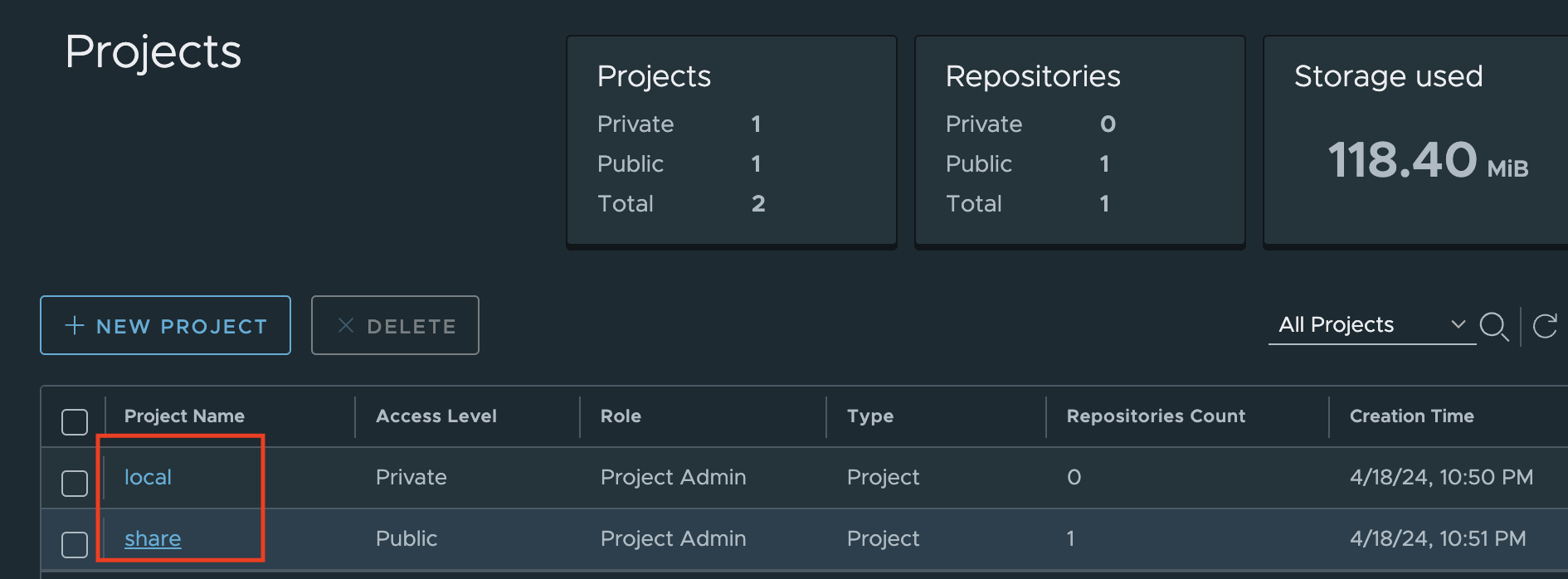

这个就是我们的项目名称了，我们点进去就可以看到我们上传的镜像了。

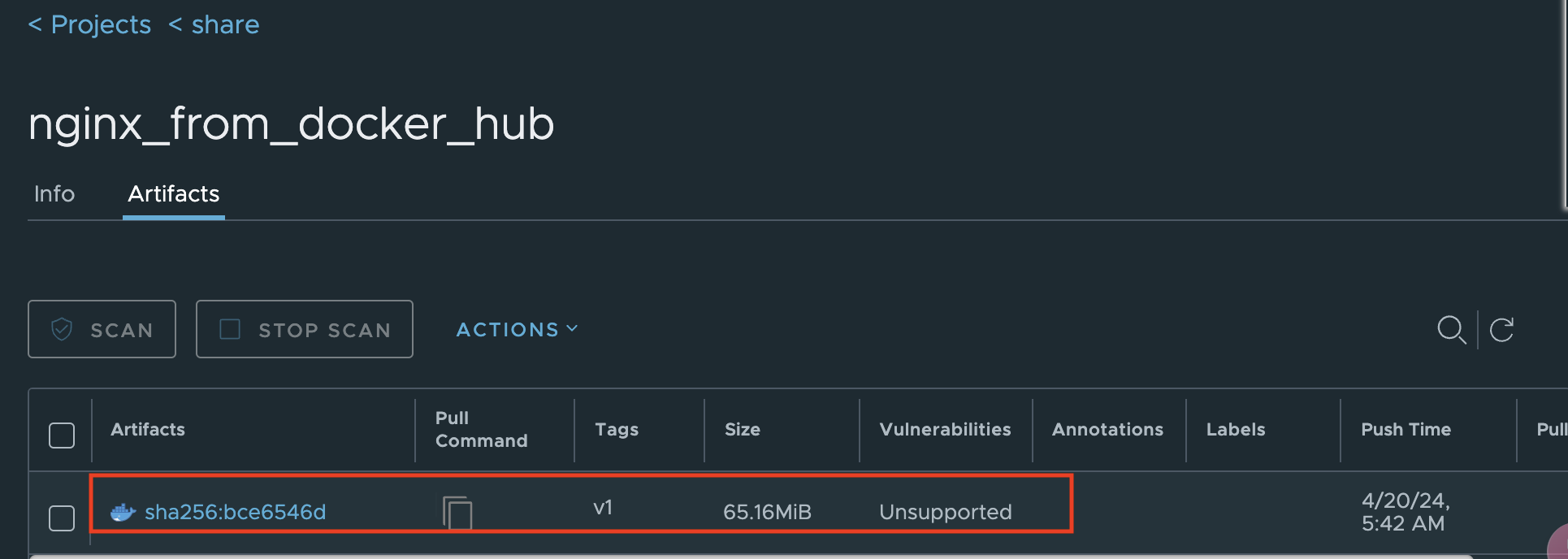

然后再次点击进去就可以看到更详细的了；
这里我们的上传镜像就完成了。
8、拉取镜像
1, 拉取方法一

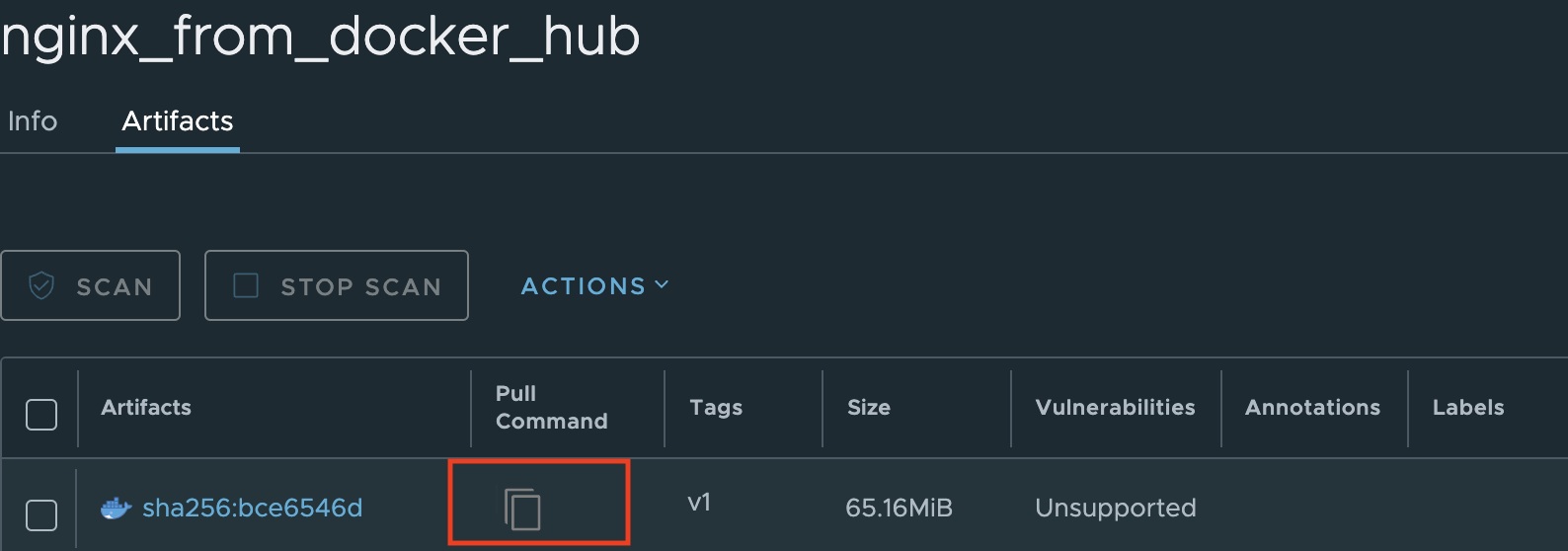

拉取镜像的话，我们可以点击这个小按钮，然后直接粘贴到 linux 中等待拉取就可以了；
2, 拉取方法二
格式：
$ sudo docker pull 上传时修改的镜像名

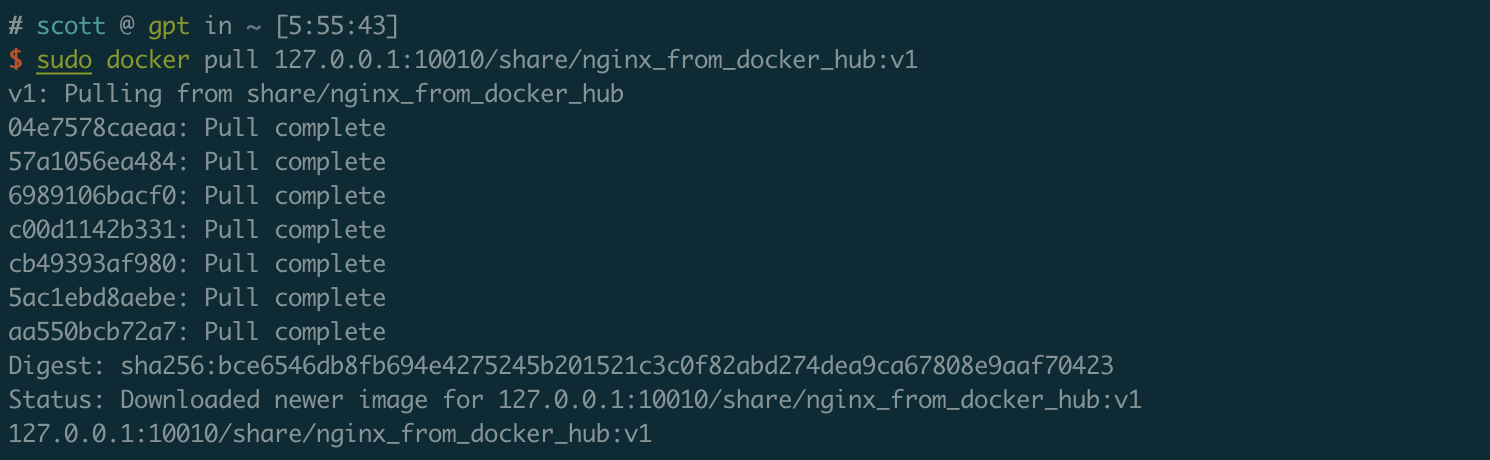

实例：
9、删除 harbor 镜像库中的镜像
删除镜像就是直接在 web 页面操作的；

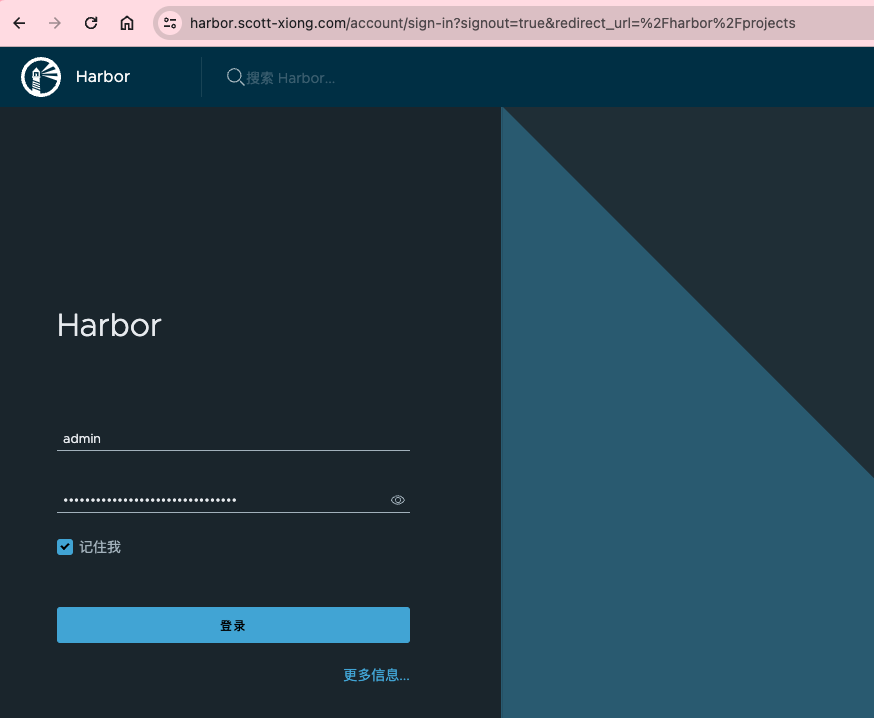

1， 先登陆harborweb页面

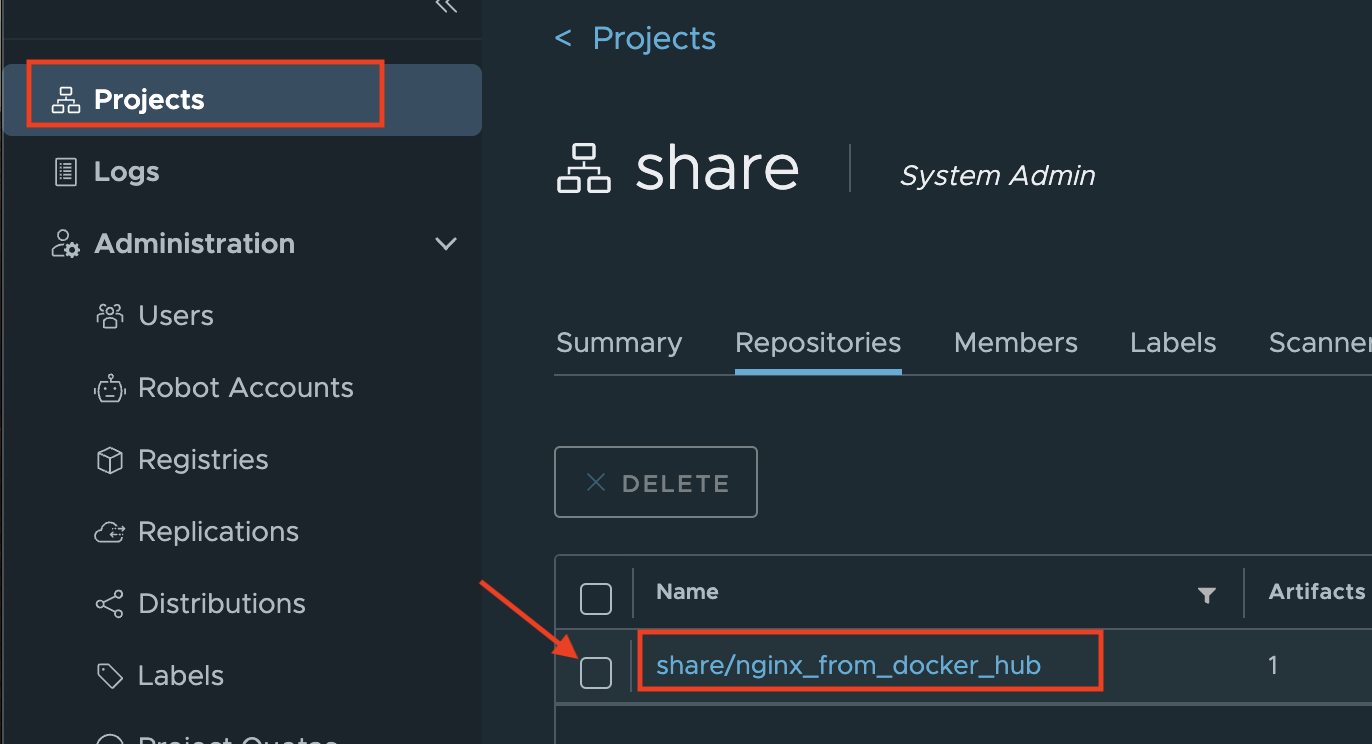

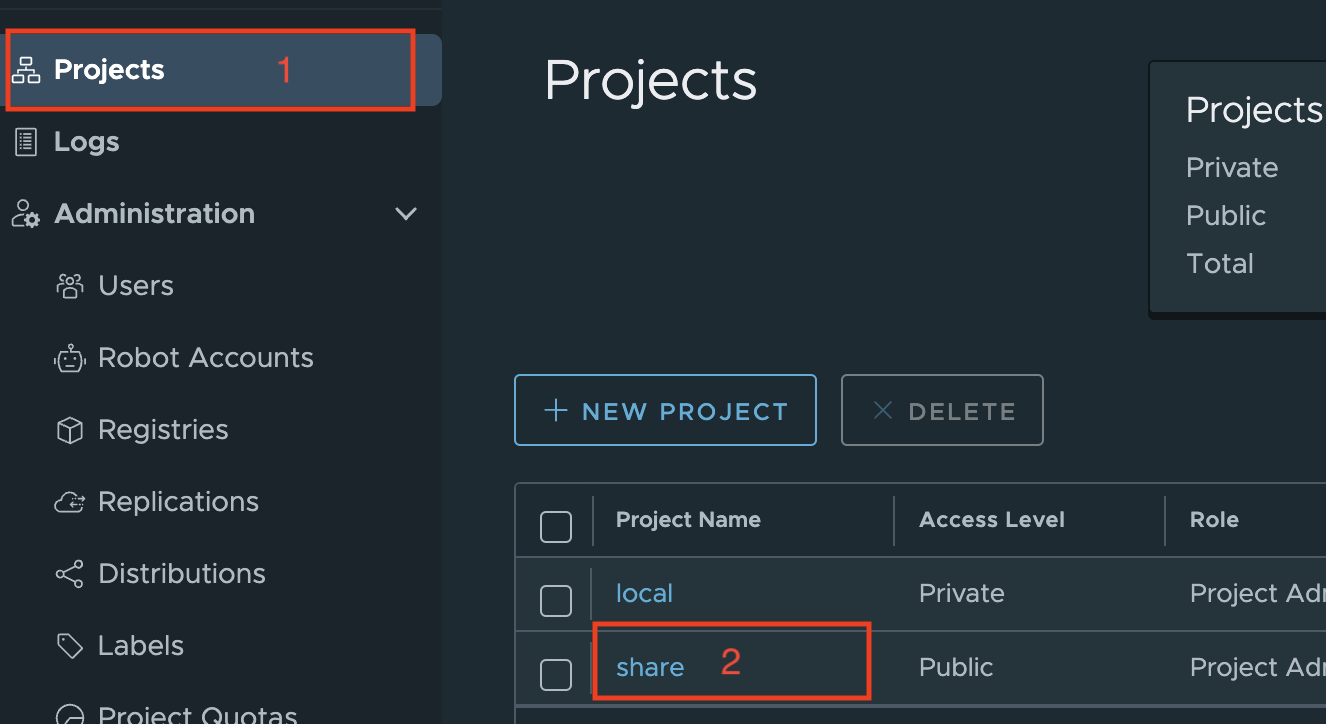

2， 点击项目——点击项目名称

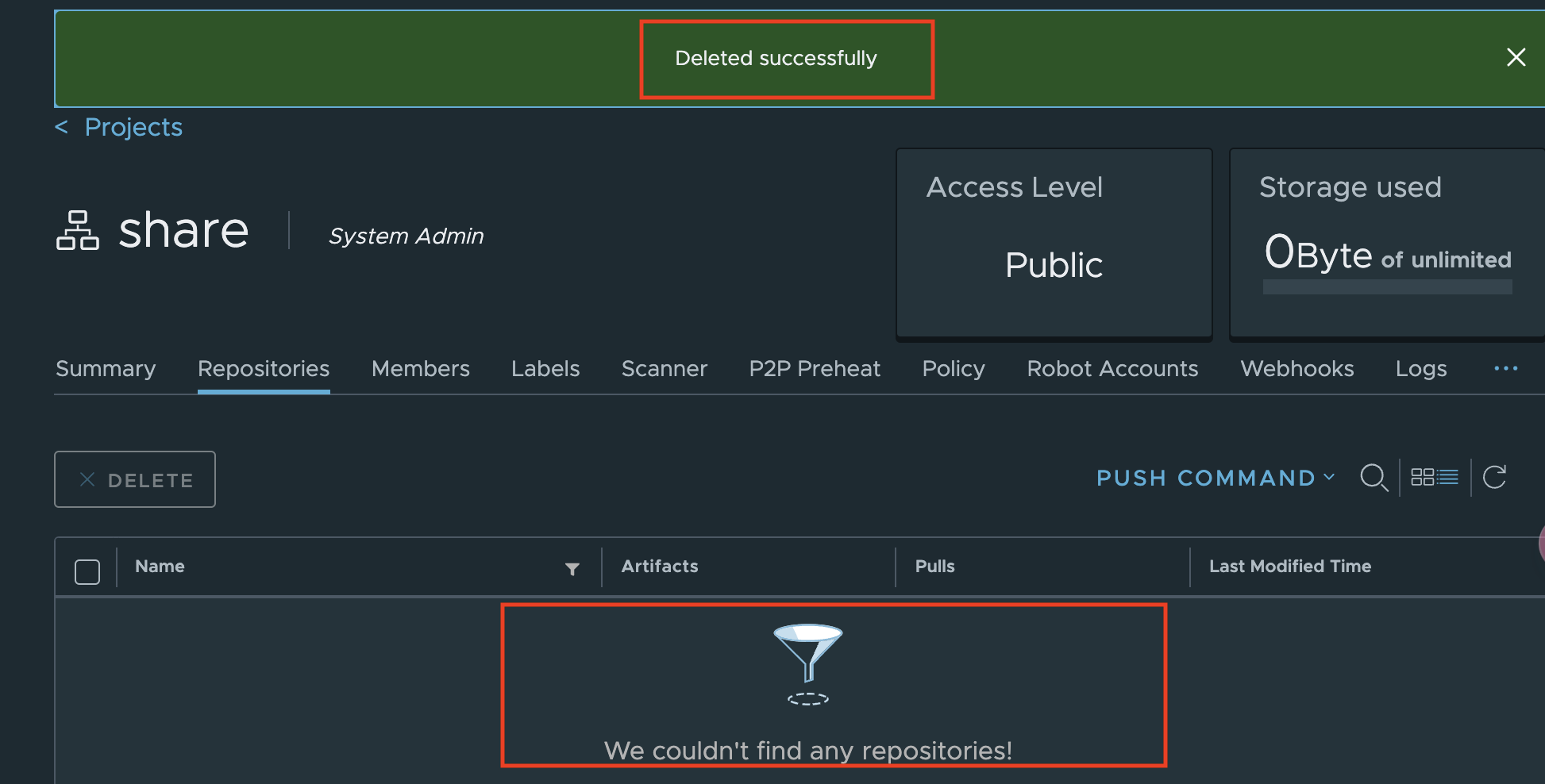

3， 删除 harbor 镜像库中的镜像
找到要删除的镜像，选中前面的空白框；
选中要删除的镜像

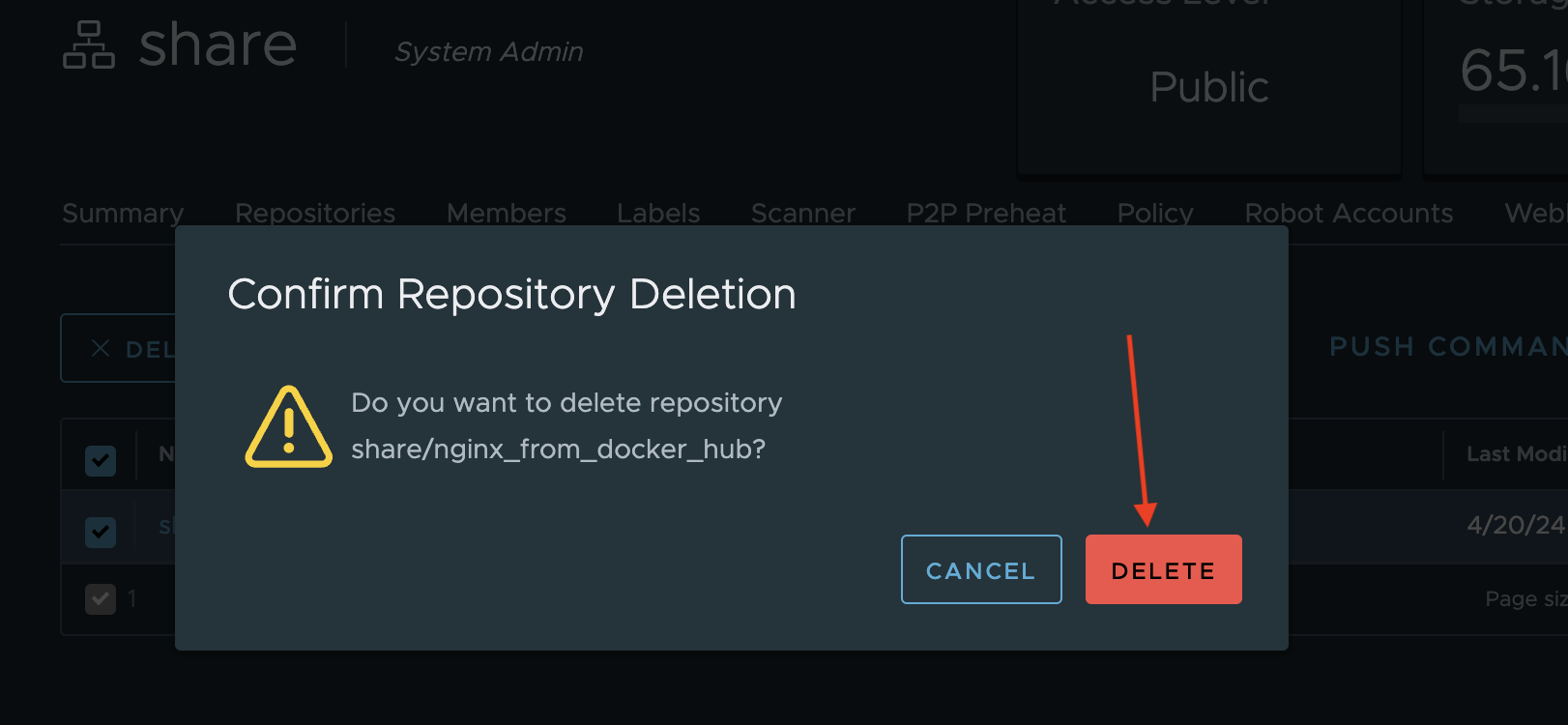

——点击删除——确认删除

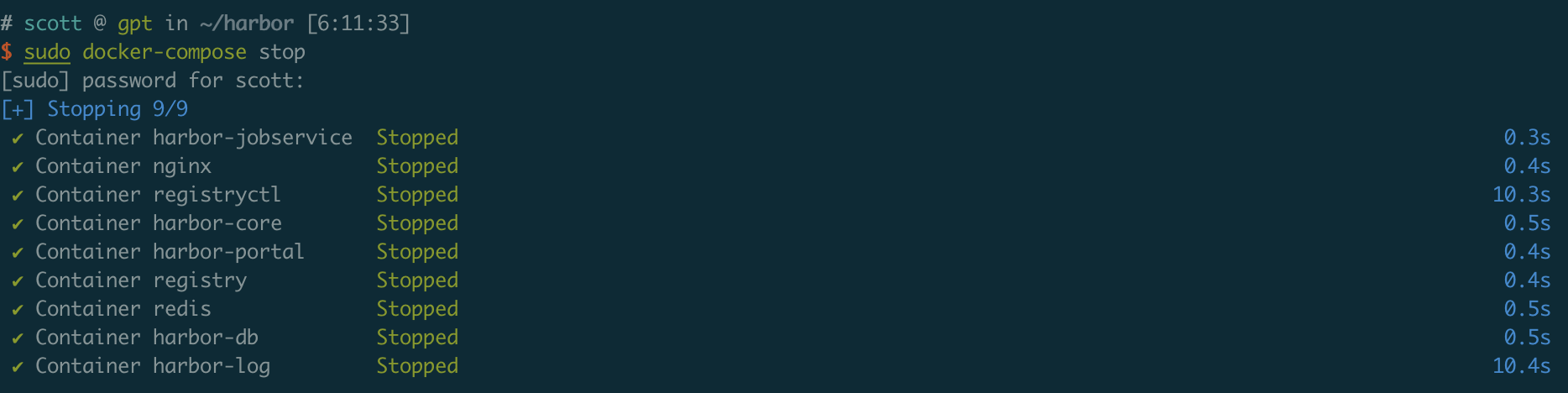

### 10， 停止harbor服务
# 先cd到harbor目录
$ sudo docker-compose stop

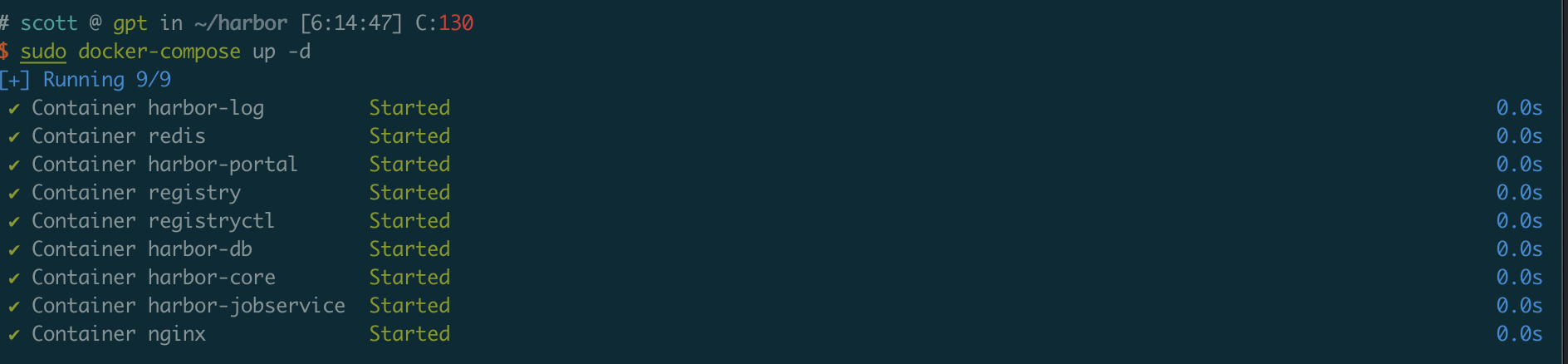

11, 启动harbor服务
# 先cd到harbor目录
$ sudo docker-compose up -d
好了，今天所有的到此结束了，感谢大家的阅读。
后续

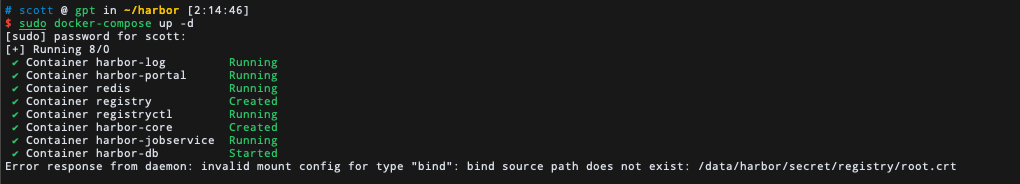

但是这种部署方式有个缺陷，不重启还好，一个机器重启，下次就无法run起来了
